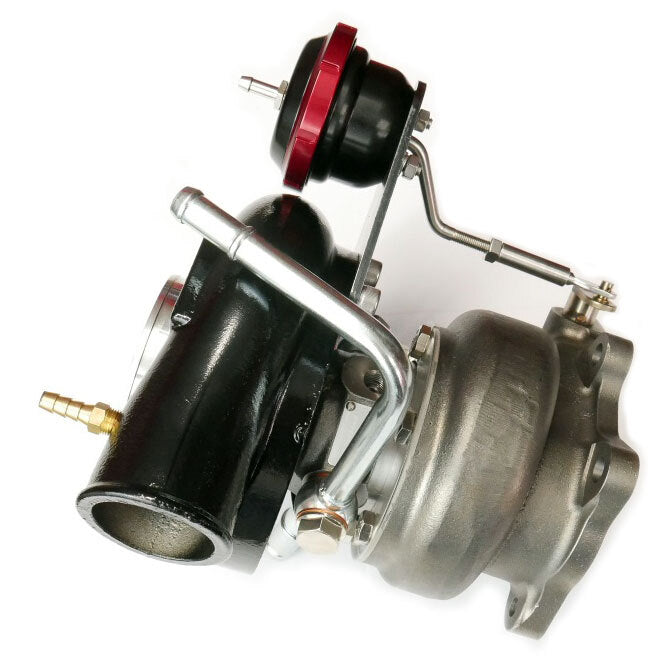

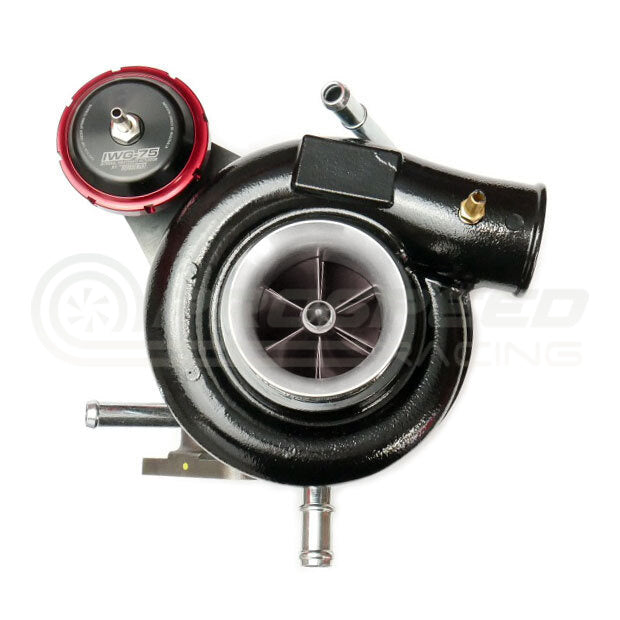

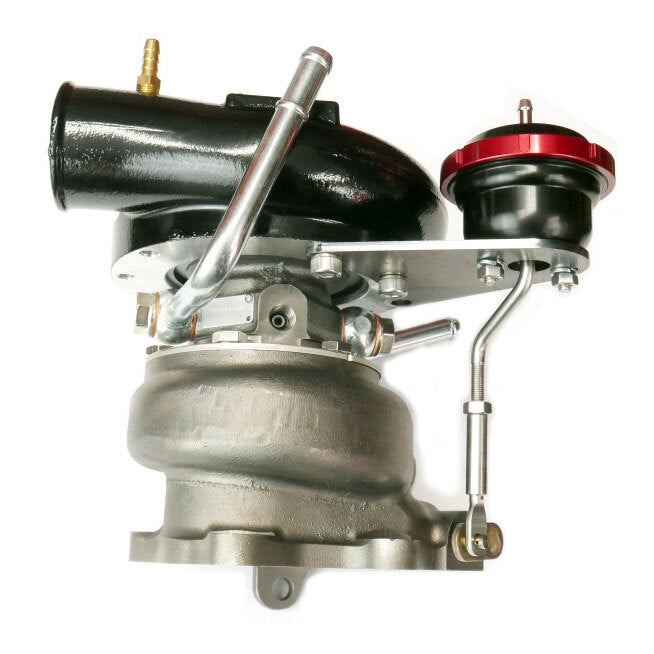

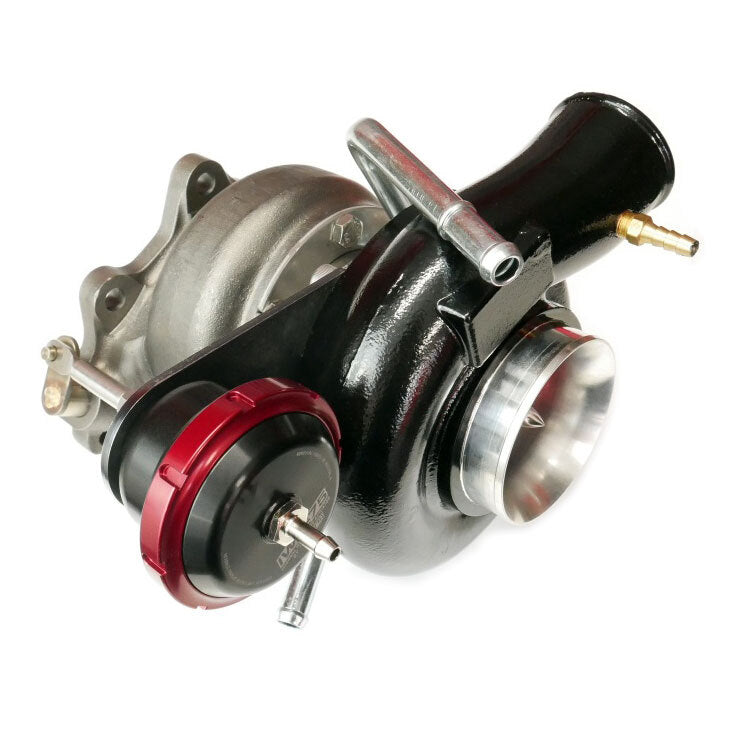

PSR - GTX Ball-Bearing 3076R Bolt-On Turbo - 8cm

PSR - GTX Ball-Bearing 3076R Bolt-On Turbo - 8cm

Regular price $1,999.00 AUD
Regular price Sale price $1,999.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

Bolt-On Horsepower with the PSR GTX 3076R Ball-Bearing Turbo! Featuring a high-flow billet compressor wheel for durability and faster spool. Features a 3" Inlet for maximum response in a bolt-on frame (3" turbo inlet required separately)

Fitted with a Turbosmart IWG75 internal actuator for precise boost control.

Specifications:

  • Comp Wheel: 58.0/76.0mm
  • Trim: 58
  • A/R: 0.60
  • Turbine Wheel: 60/55mm
  • Trim: 84
  • Horsepower: 400-750hp
  • Displacement: 1.8- 3.0L.
  • Turbine Inlet: Subaru Single Scroll
  • Turbine Outlet: Subaru 5-Bolt
  • Wastegate: Internal
  • Compressor Inlet: 3.0" (Aftermarket 3" Inlet Required)
  • Compressor Outlet: 2.0" (Stock)

Includes:

  • 1 x 3076R Turbo
  • 1 x Turbosmart IWG75 Actuator

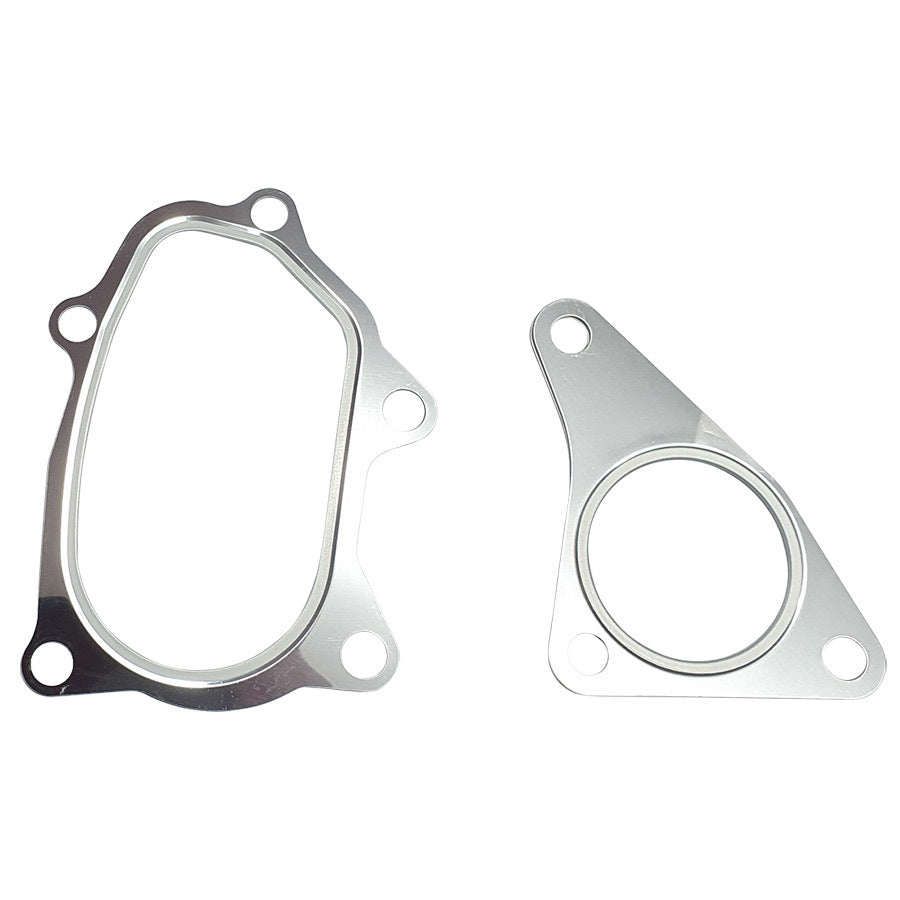

  • 1 x Gasket Kit

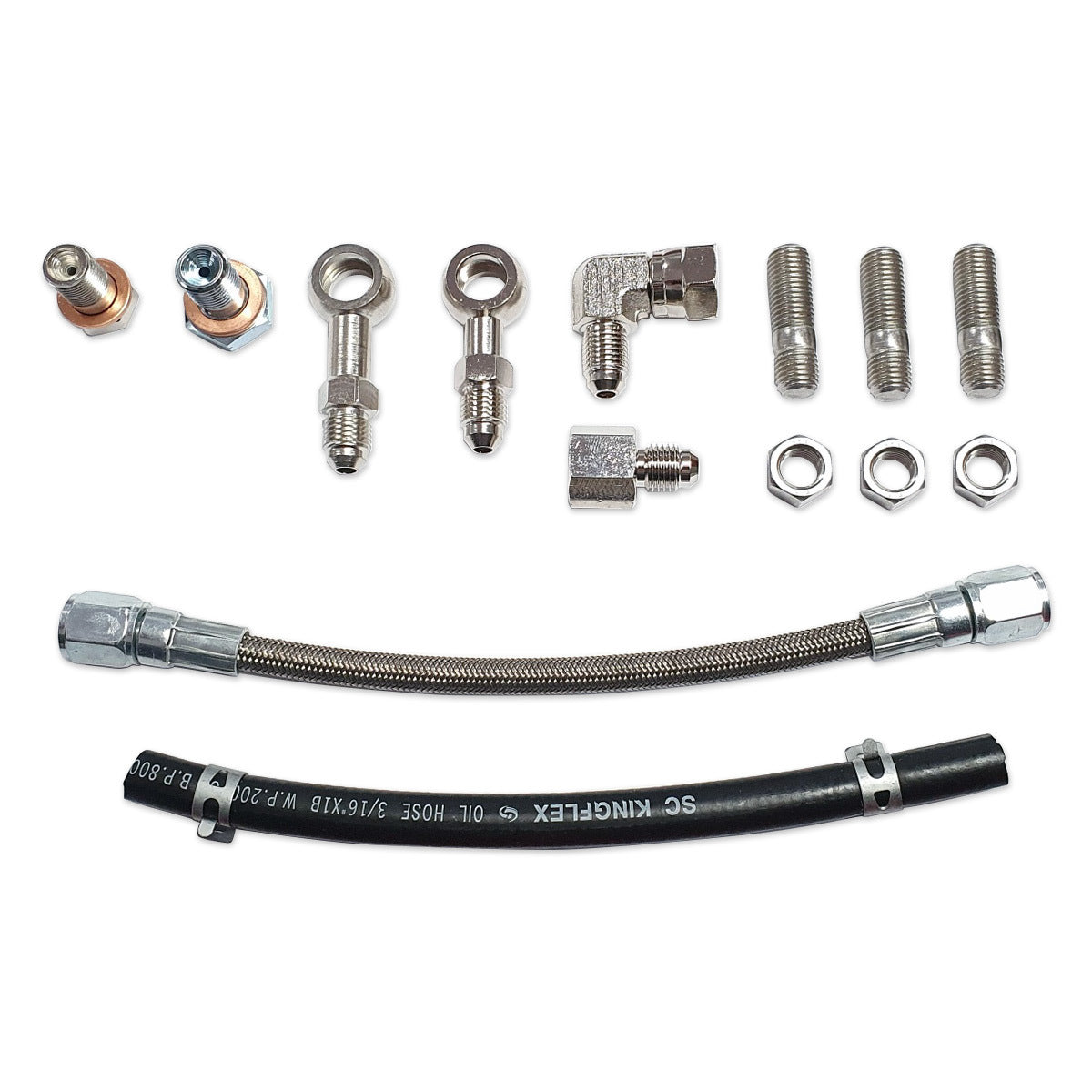

  • 1 x Oil Line Fitting Kit
  • 1 x Stud Kit
  • 1 x Actuator Vacuum Hose

Vehicle Fitment:

  • 1994-2000 Subaru WRX GC8/GF8
  • 2001-2007 Subaru WRX GD/GG* (TGV Deletes Required. 2006-2007 Models Require Air-Pump Deletes)
  • 1994-2000 Subaru STI GC8
  • 2001-2007 Subaru STI GDB* (TGV Deletes Required. 2006-2007 Models Require Air-Pump Deletes)
  • 2008-2014 Subaru STI GVF/GRF* (TGV Deletes Required. Requires Air-Pump Deletes)
  • 2015-2021 Subaru STI VAB+ (TGV Deletes Required. Requires Air-Pump Deletes)
  • 1998-2002 Subaru Forester GT SF
  • 2003-2008 Subaru Forester XT SG* (TGV Deletes Required. Requires Air-Pump Deletes)


Suitable for Following Vehicles with Aftermarket Top-Mount Intercooler and Traditional Hose Side Hose:

  • 2008-2014 Subaru WRX GE/GH/GR/GV* (TGV Deletes Required. Requires Air-Pump Deletes)
  • 2008-2013 Subaru Forester XT SH* (TGV Deletes Required. Requires Air-Pump Deletes)
  • 2007-2009 Subaru Liberty GT* (TGV Deletes Required. Requires Air-Pump Deletes, Single-Scroll Only)
