MCA - Reds Coilover Kit - WRX VB (22+)

MCA - Reds Coilover Kit - WRX VB (22+)

Regular price $3,690.00 AUD
Regular price $3,690.00 AUD Sale price $3,690.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
Shock Shield Option

Vehicle Specific Specs & Spring Rates:

Spring Rate

Custom Spring Rates And Valving.

Front

Non-inverted strut design, Camber tops, Camber washer bottom mounts, 5×114.3 front stud pattern, MCA Shock Shield Compatible.

Rear

Coilover design, MCA Shock Shield Compatible.

MCA Reds are our longest-running product second only to the Gold Series. Whilst traditionally they are recognised for their performance and flexibility in tarmac based motorsports such as circuit, time attack, drift, drag and roll racing, their valving and springs can also be tailored to suit comfort based street use or anything in between. The MCA Reds are currently the suspension of choice for a number of control racing categories both in Australia and overseas as well as featuring on our own lap record-holding Time Attack Toyota 86. Their valving and spring rates are determined by our Suspension Gurus on a per-customer basis.

The Reds are internally and externally assembled here in our Brisbane Workshop. This way we have full control over the quality and accuracy of our products, plus our customers get freshly assembled suspension.

Suitable Applications:

  • Anything tarmac based, customer to specify application.
  • Extreme low stance/ride height.
  • Comfort focused street use through to competitive motorsport use.
  • Complete custom setup.
  • Designed, Developed, Assembled & Fully Supported in Australia.
  • 3 Year Platinum Warranty.
  • Fusion Valving Technology V2.
  • Custom Valving designed by MCA for customers specific requirements.
  • Custom Springs chosen for customers specific requirements.
  • Dyno Tuning & Testing high level of quality control.
  • 12 Clicks of Hard/Soft Damper Adjuster (Bump & Rebound together).

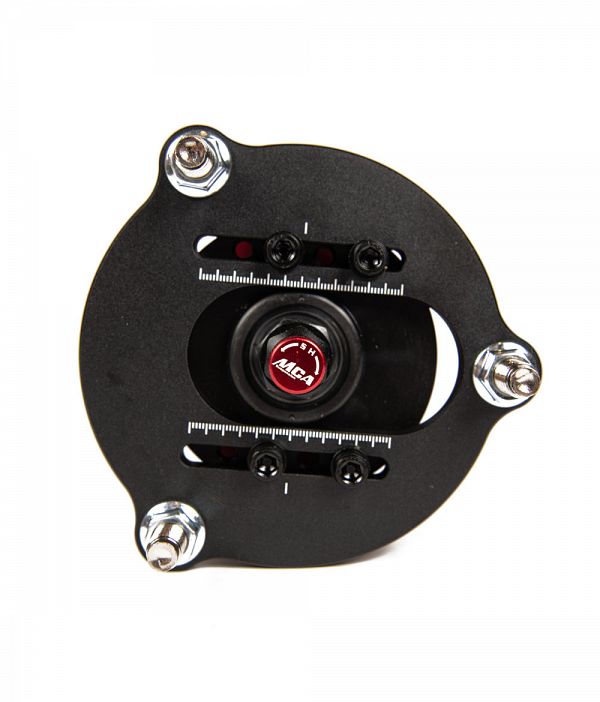

  • Camber Adjustment via top mount (where possible, see additional information).

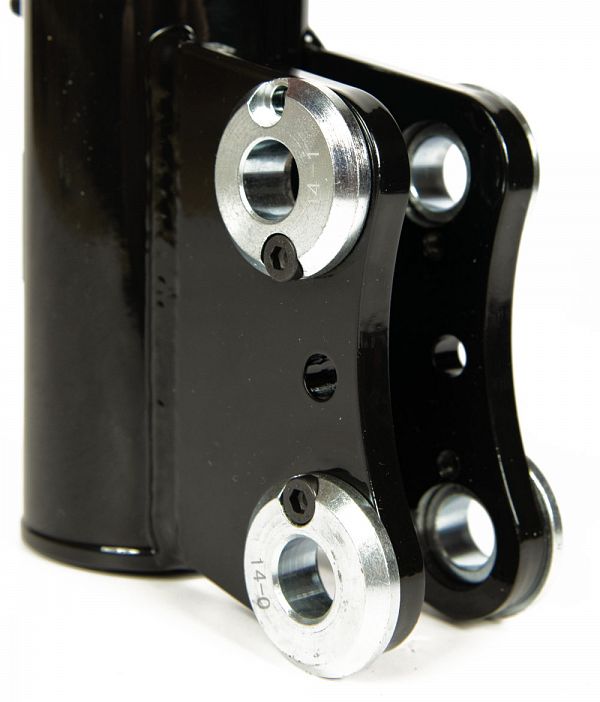

  • Camber Washer Bottom Mounts (where possible, see additional information).
  • Damper Adjuster Extenders (where possible, see additional information).
  • Wheel travel range adjustment via the bottom mount (pre-set by MCA).
  • Height adjustment via spring seat position (base height adjustment is flawed).
  • Suggested Height Adjustment Range: depends on the specifics of the order.
  • Reinforced double gusseted lower mounts (where applicable, see additional information).

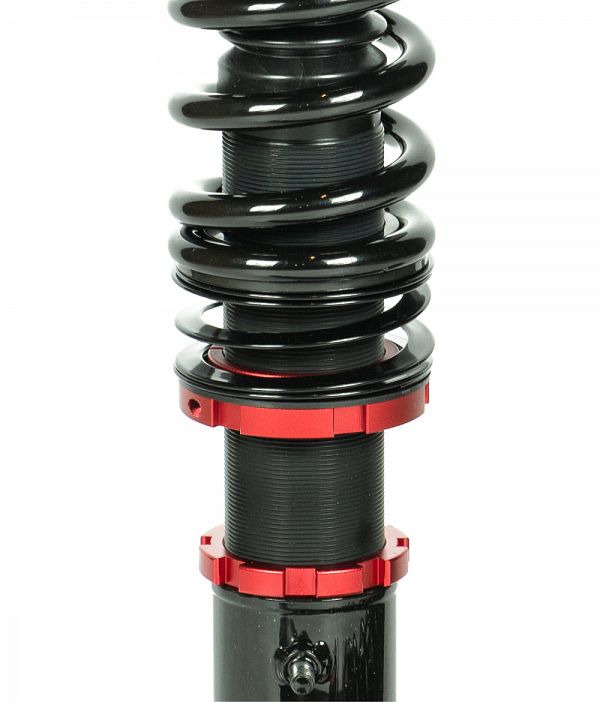

  • Helper Springs to keep the main spring captive at all times.
  • Latest Rugged Spec internal sealing designs and components.
  • Superior Monotube design.

Extended Warranty Option (30th May 2024 onwards)

If Shock Shields are purchased within the same order as the suspension set or pair (MCA Reds or MCA Pro series only), then that set or pair of suspension is eligible for an additional 2 years of warranty on top of their existing 3 year warranty (5 years total). Details below.

  • The number of Shock Shields purchased must match the number of suspension units purchased. Eg. If a complete set of suspension is purchased, a complete set of shock shields must also be purchased.
  • The additional 2 year warranty DOES cover all visible defects or issues (noted below in Applicable Coverage)
  • The additional 2 year warranty DOES NOT cover audible defects or issues (noted below in Applicable Coverage)
  • The additional 2 year warranty is transferrable if the suspension set or pair changes owners within the warranty period.
  • If the Shock Shields are not fitted to the suspension set or pair at all times that the vehicle is in use, then the extra 2 years of warranty coverage are void. MCA Suspension reserves the right to void this extra warranty period if there is evidence suggesting that the shock shields were not always fitted.
