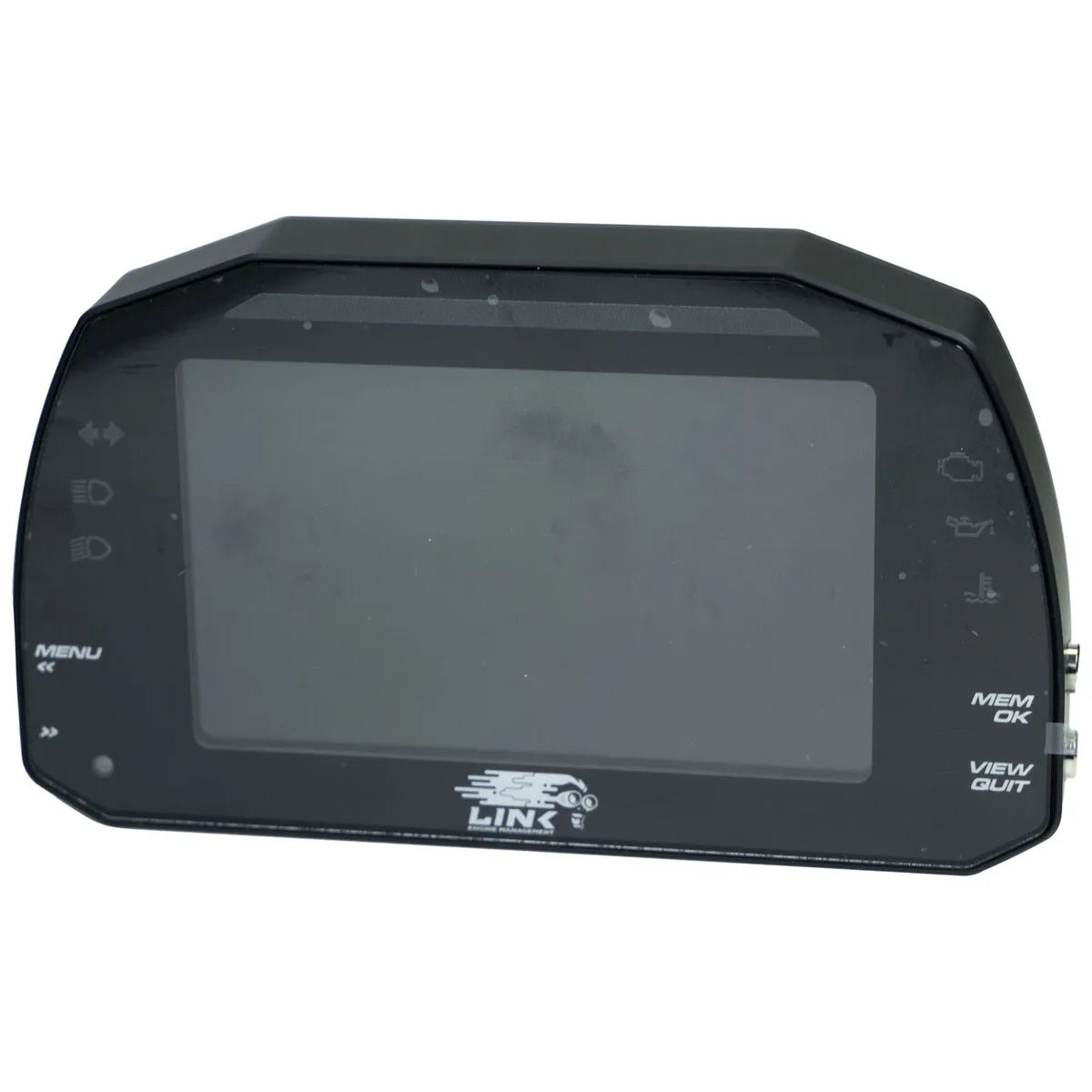

Link MXS Strada 5" Digital Display Dash - Race Version

Link MXS Strada 5-inch dash, powered by AIM.

The Link MXS Strada Race Edition is a full colour, 5-inch dash display with 10 RGB shift lights and six customisable alarm LED lights. The dash is pre-configured to work with all Link G4+/G4X Wire-In and Plugin ECU's. See features tab for more information. This listing is for the ‘Race edition’ please see the 'Street edition' if you are looking for a dash for street purposes. The Strada dash is also available in 7-inch (MXG) and 10-inch (MXT) versions.

The Link MXS Strada Race Edition dash features customisable shift lights, flexible alarms and a high contrast 5-inch TFT screen display. Visual quality is always optimal as the ambient light sensor auto-adjusts the brightness of the display.

The 10 multi-coloured RGB shift lights on the MXS Strada can be customised to your liking to define the RPM threshold for each single gear.

The same flexibility applies to the configurable RGB alarm LEDs. You can configure them to turn on or off based on analog or digital inputs, ECU values, expansion values, math channels, or optionally, GPS information (GPS module available). You choose the conditions and colours, and can select between a solid or flashing alarm, with control over the flashing frequency. It is also possible to display a custom text message along with alarm priorities.

The dash is extremely easy to use, with buttons on the side to navigate through a library of preset display styles, depending on what information you want to see and how you want it displayed. The screen can show all real-time information from the ECU such as RPM, speed, water temperature, oil pressure and much more.

The Link MXS connects directly to your Link ECU via the pin kit and wiring provided in the box. To use with plugin ECUs, CANPCB and CANF connectors are required (purchased separately).

The dash can be personalised using Link ECU PC Link and Aim Technologies Race Studio 3 software.
