IAG Performance : 600 FA20 STD Compression 12.5:1 Short Block - Subaru BRZ/Toyota 86

POWER RATING

The IAG 600 Long Block has a power output rating of 600BHP.

DESIGNED FOR STRENGTH

The IAG 600 Short Block is designed for stock or modified FA20 Subaru BRZs that need a stronger short block to support increased cylinder pressures created by modifications, or aftermarket turbo kits. The IAG 600 short block features IAG Spec H-Beam forged connecting rods. The upgraded connecting rods and race bearings are able to support additional engine load produced by aftermarket turbochargers or increased boost which the OEM rods and pistons found in the stock short blocks cannot support reliably.

BUILT WITH 100% NEW COMPONENTS

Each IAG 600 Short Block starts with brand new FA20 BRZ/FT86 2.0L, 86mm stock bore engine case halves as standard. The case haves are carefullly bored and honed to 86.1mm then measured and assembled using a new 2015+ Subaru 2.0L FA20 crankshaft, which is matched to ACL or King race main bearings. The IAG 600 Short Block features IAG Spec H-Beam Connecting Rods with ARP2000 rod bolts, along with ACL or King race rod bearings. The case halves are sealed with new OEM main case bolts and sealant. Finally, IAG Spec JE FSR 86.1mm Forged Pistons are carefully selected, measured, and installed to finish off the short block.

MODIFIED OIL PASSAGES FOR INCREASED OILING

Adequate oil flow is critical to performance and relibility. It's no secret that the OEM cases from Subaru leave something to be desired in the oiling department. Our machinists carefully inspect and modify the internal oil passages of each new OEM case used in the IAG 600 Short Block to ensure proper flow and reliability.

FORGED PISTONS, DESIGNED FOR BOOST

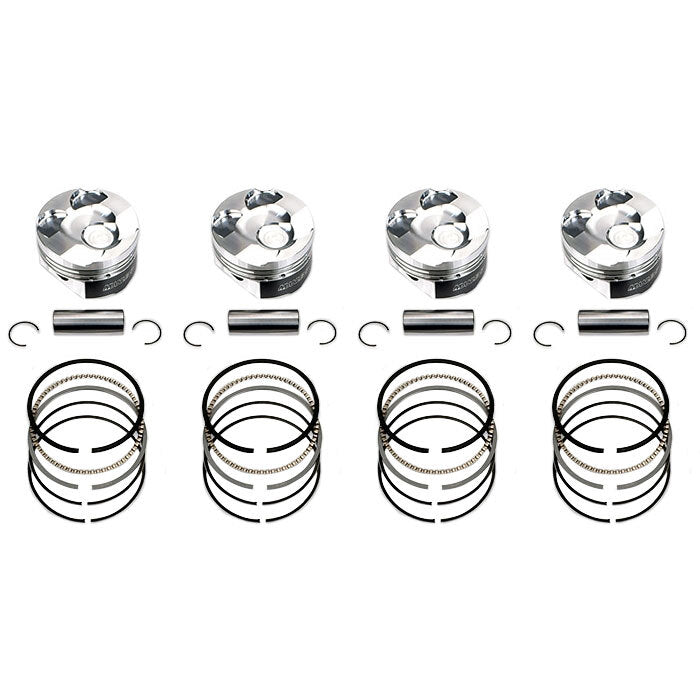

Each IAG 600 Short Block features IAG Spec JE FSR 86.1mm Forged Pistons. These 2618 T6 Alloy high-strength pistons have been specifically designed to support increased cylinder pressures which come with more boost. FSR forgings reduce mass and wear caused by friction without sacrificing strength. This is accomplished by using an asymmetrical skirt design instead of the traditional full-round skirt, also this reduces weight significantly. Featuring smooth flowing radii on the domes and dishes, the design promotes excellent flame travel. The pistons are secured to the rods with .905 x 2.250" x .150" wall carbon steel wrist pins with Tru Arc locks. Note this block features standard 12.5:1 compression ratio which is ideal for low boost or stock applications.

QUALITY GUARANTEED

We stand behind every hand-built engine we produce. IAG's Standard Long Block Workmanship Warranty covers your long block for 12 months or 12,000 miles.

IAG 600 FA20 2.0L FT86/BRZ Standard Compression Short Block Includes:

• Case Halves - Brand new OEM Subaru FA20 case halves, bored and honed to 86.1mm
• Case Machining - Modified for improved oiling
• Case Machining - Bored and honed to 86.1mm
• Pistons - IAG-Spec 86.1mm Forged Pistons, Ring Set, and .150" x 2.250" Chromoly Wrist Pins.
• Connecting Rods - IAG-Spec H-Beam / ARP2000 Rod Bolts
• Rod - ACL or King XPG
• Main Bearings -OEM or King XPG
• Crankshaft - New Subaru FA20 crankshaft
• Case / Main Bolts - Standard Subaru case bolts
• Hardware - OEM Oil Plug - comes preinstalled at the oil pan location

Compression Ratio:

• 12.5:1 compression on standard gasket thickness.

Vehicle Fitment:

Additional hardware may be required to install this long block to the following vehicles, including but no limited to ECU, Sensors, Ancillaries, Covers, Pumps etc.

• 2012-2021 Subaru BRZ ZC6
• 2012-2021 Toyota 86 ZN6
