Alcon - CAR89 TA6 - Big Brake Kit (BBK) - Front (WRX) (6pot)

Race Calipers - Ultimate Braking Control

Alcon designs and manufactures a wide range of market leading and race winning calipers, used widely in GT racing, Touring cars and LMP racing to name but a few. Here are some of our most popular brake calipers, tested to ensure ultimate braking control. Alcon's Race Calipers include the CAR89 6-Piston, CAR36 4-Piston and CRB343 4-Piston models.

CAR89 TA6: + Alcon 355x28mm - Floating Rotor.

• 6-Piston Forged Race Caliper Front/Rear
• Applications: Rally, Group N+, Touring Car and General Race use.
• Disc diameter range: ø280 - 343mm
• Radial mount for maximum rigidity and firm, consistent pedal
• Differential piston diameters to minimise pad taper wear
• 2kg anti-knock back springs
• Hard stainless steel wear plates
• Fixed pad retainer bars to increase stiffness, remove caliper to change pads

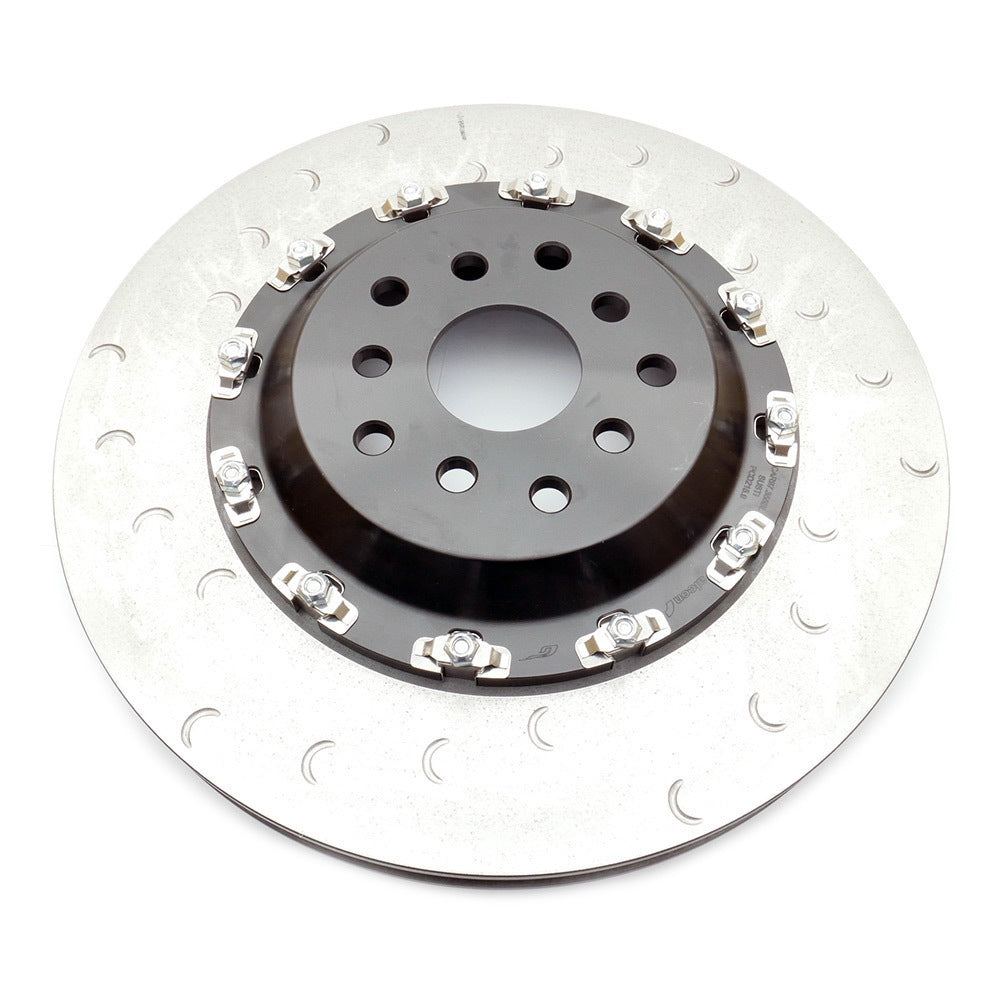

Alcon 2-Piece Floating Discs

Advantage Extreme discs have been engineered to produce optimum bite, thermal stability, and durability in an exceptionally high strength to low weight design. This has been achieved by combining a special Alcon-developed iron alloy disc with an aerospace specification alloy bell.

All Alcon Discs Feature:

• Unique crescent grooves on friction faces provide the bite usually associated with drilled discs without the attendant durability problems.
• Directional curved cooling vanes for optimum cooling performance.
• Alcon’s floating disc system* (as used in the majority of applications) has been designed to allow thermal expansion of the disc throughout its life while minimising the tendency to judder.

What’s in the box

All Alcon Big Brake Kits include all the parts that you will need, excluding brake pads and fluid (see below):

• (2) 4 or 6 Piston Alcon Caliper
• (2) Alcon Special Iron Alloy Disc or DBA 5000 T3 Slotted Disc
• (2) Vehicle Specific Bell Assembly with Fixings
• (2) Vehicle Specific Caliper Bracket with Fixings.
• (2) Vehicle Specifc ADR Approved Brake Line (Goodridge or HEL Performance depending on availability)

NOTE - Minimum 18inch wheel required to fit this kit
KIT DOSE NOT INCLUDE BRAKE FLUID OR PADS

Stock Availability
Due to the large selection of applications and customisation available, your unique brake kit may not be in stock locally and may take 3-5 weeks for production and delivery.
Rest assured, it is worth the wait and we will keep you updated.
